DC-DC Step-Down & Step-Up Converter 1.8V-5V to 3.3V Power Wifi Bluetooth ESP8266

  • 15.00 AED
    • Ex Tax:15.00 AED
    • Brands China
    • Product Code:
    • Availability: In Stock
    Low Noise, Regulated Charge Pump DC⁄DC Converter2 in 1 DC-DC Step-Down & Step-Up Converter module1. Fixed 3.3V+-4% Output2. Voltage Input Range: 1.8~5V ( You can use two of this module to use the 1.2V NiMH batteries).3. Long-time maximum output current 100mA4. Short time maximum output current 1..

    Low Noise, Regulated Charge Pump DC⁄DC Converter
    2 in 1 DC-DC Step-Down & Step-Up Converter module
    1. Fixed 3.3V+-4% Output
    2. Voltage Input Range: 1.8~5V ( You can use two of this module to use the 1.2V NiMH batteries).
    3. Long-time maximum output current 100mA
    4. Short time maximum output current 150mA
    5. working frequency 1.2MHz.
    6. Short-Circuit Protection
    7. No-load input current : 0.65mA
    8. 2.54mm pin pitch, for Breadboard MCU Development Board friendly

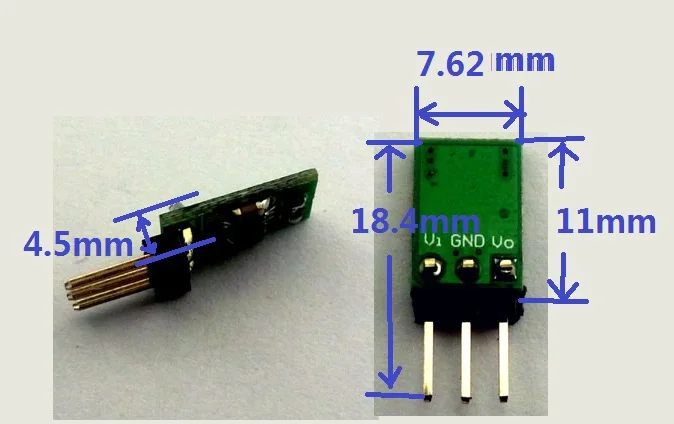

    9. Excluding Pin Size 11mm x 7.62mm x 4.5mm(small)
    10. Weight : about 0.5g

    Applications:
    Low-Power Wifi Module:ESP8266
    Low-power Bluetooth module : HC-05 HC-06
    Low-power Wireless UART module : HC-11 HC-12
    Low-power wireless module : CC1101 CC2500 Nrf24l01+
    Low-power LED Driver
    نتيجة بحث الصور عن ‪DC DC Step-Down & Step-Up Converter 1.8V-5V to 3.3V Power Wifi Bluetooth ESP8266‬‏

    Attention :
    This is a DC-DC voltage converter module, must be noted when using:
    1. Input voltage can not be greater than the maximum input range
    2. Output power can not be greater than the maximum load for a long time
    3. Input power must be greater than the output power, because the power consumption of the module itself
